HPS-A702 (S.Bus2/Brushless)

246.00€

servos futaba

Futaba

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

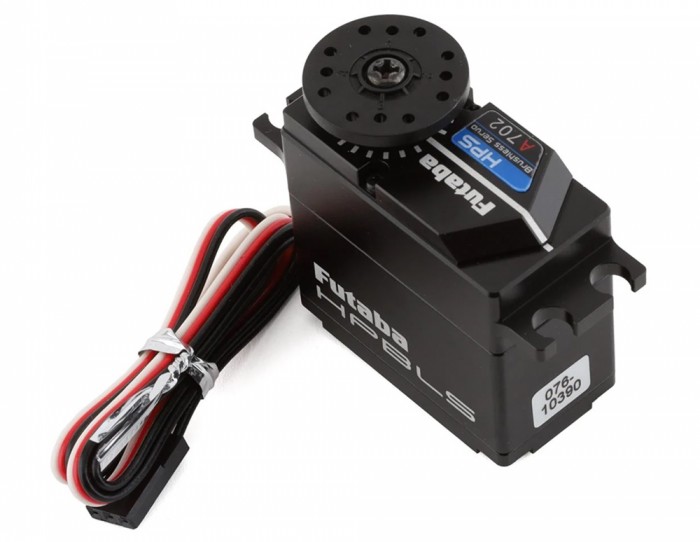

HPS-A702– S.Bus2 High-Voltage Standard Airplane Servo
High Performance Servo with Brushless Motor (01102369-3)

HPS-A702– Servo de avião padrão de alta tensão S.Bus2
Servo de alto desempenho com motor sem escova (01102369-3)

FEATURES:
– For all-purpose giant scale airplanes.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Suggested upgrade for BLS172SV/177SV
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Final gear material is Stainless Steel.
– Upper/middle/bottom: Aluminum Case

SPEED:
0.13 sec/60°at 6.6V
0.12 sec/60° at 7.4V

TORQUE:
68.0 kgf/cm at 6.6V
944.4 ozf/in at 6.6V
74.0 kgf/cm at 7.4V
1027.7 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 39.4 mm
1.59 in x 0.83 in x 1.55 in

WEIGHT:
82 g
2.89 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE

Este produto foi introduzido em Quinta 04 Maio, 2023.
