DUPLEX 2.4EX Receiver R18 + Rsat2

219.90€

RECETORES JETI

JETI

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

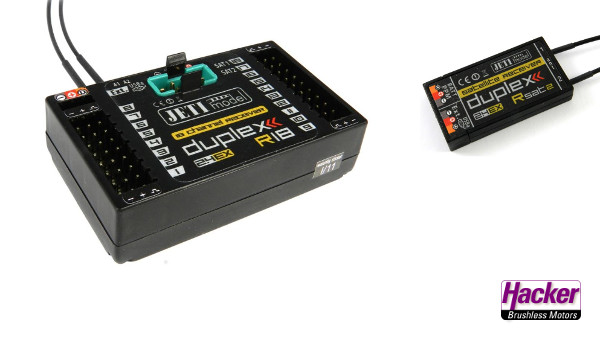

DUPLEX 2.4EX Receiver R18 + Rsat2

DUPLEX 2.4EX Receiver R18 incl. Rsat2

Perfect for large models and for maximum saftey in flight. 2 receivers with 4 antennas will give you the best performance you can get. 18 channel full-range receiver compatible with JETI EX & EX Bus protocols. Supports full ex telemetry functions. Power supply is provided by MPX connector (recommended) or standard JR connectors.

Additional features:
PPM input (Sat1)
PPM input or output (Sat2)
JETI Duplex Rsat2 is included in the package

technical Data R18ex:
Weight [g] 30
Dimensions [mm] 62 x 38 x 16
Number of channels 16, at 18 Outpins
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 2 x 400
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 40
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106

technical Data RSAT2:
Weight [g] 6
Dimensions [mm] 38 x 20 x 7
Number of channels 16
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 2 x 200
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 30
Satellite receiver support No
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
