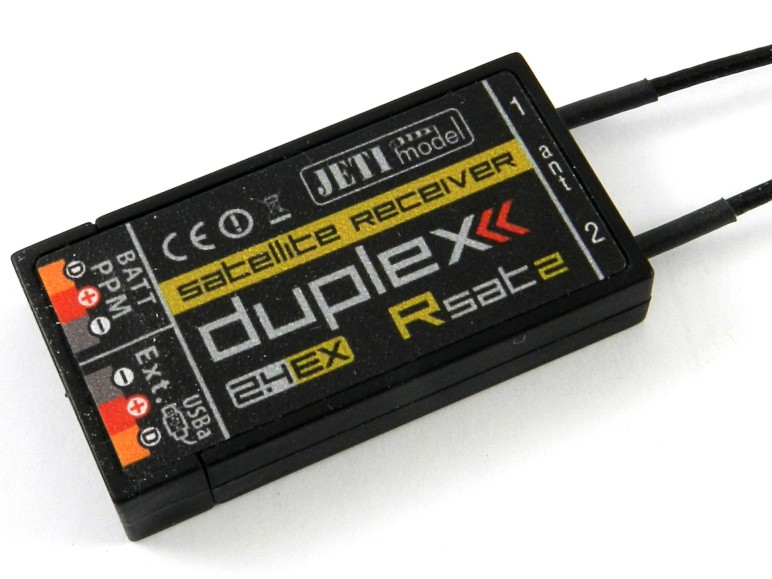

DUPLEX 2.4EX Satellite receiver Rsat 2

Description JETI Duplex RSAT2:

NEW: Version 09.2013 with plug connection for PPM patch cable

This new satellite receiver can be connected as an extension to the following RX of the JETI Duplex System: Duplex R9, R10, R12, R14, R18 and Central Box 100 / 200.
There is also the possibility that satellite receiver is conneted to numerous flybarless systems and various Quadrocopter systems as the sum signal receiver. The Rsat2 replaced the Rsat. The Rsat2 characterized by a higher receiver sensitivity, the higher transmit power and a sleek body.

- Delivery with PPM Patch Cable 28cm length

Technical Data:
Voltage: 3.2 - 8.4V
Current: 35 mA
Dimensions: 38x20x7mm
Weight: 5 g (without PPM cable)
Sensity: -106 dBm
max. Output Power: 15 dBm
Channelcount: PPM 16
Antenna lenght: 2 x 200mm
Temperature: -10°C bis 85°C
Protocols (with SW from 3.22 or higher): PPM, UDI, EX-Bus
