Inrunner B40-9S Competition + 6,7:1 Kv 4690

359.90€

ELÉCTRICOS

Inrunner B40-9S Competition + 6,7:1 Kv 4690

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

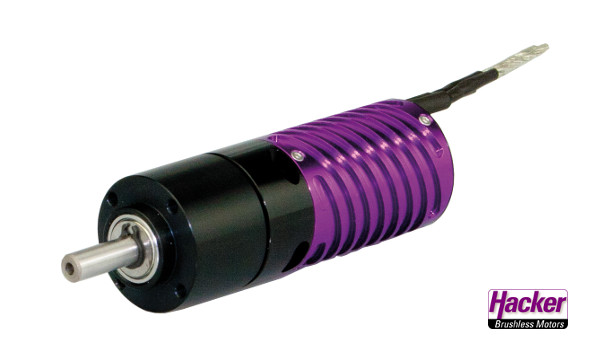

Inrunner B40-9S Competition + 6,7:1 Kv 4690

Price 359.90 plus shipping costs

The integrated high-performance fan cools the B40 competition motors in the most effective way. The running noise is also reduced to a minimum with asymmetrically positio

Technical Data

Poles 2
Turns 9
Idle current (I0) at 8.4V [A] 4
Internal resistance (Ri) [Ohm] 0,013
Gear reducing 6,7:1
Output shaft 6mm
Recommended timing [°] 0° - 5°
Switching Frequenzy [kHz] 8
Controller recommendation [A] (depending on setup) 75 - 90
Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 4690
Weight [g] 194
Length [mm]/[in] 78,2
Diameter [mm]/[in] 29,0
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6

Este produto foi introduzido em Terça 18 Julho, 2023.
