B40-6L Comp + 6,7:1 Kv 4610

379.90€

ELÉCTRICOS

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

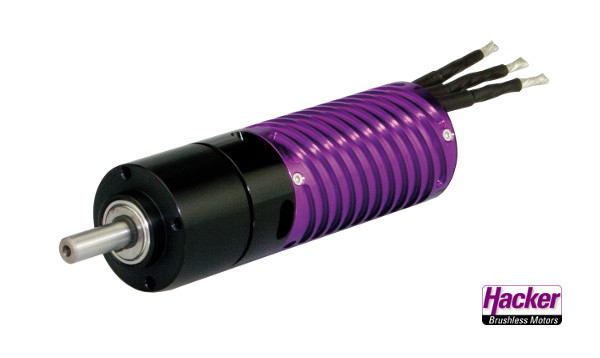

B40-6L Comp + 6,7:1 Kv 4610

Price 379.90 plus shipping costs

area of application: light weight Hotliner at 3 to 4S LiPo

The integrated high-performance fan cools the B40 competition motors in the most effective way. The running noise is also

Technical Data

max. power range [W] (max.15 sec.) max. 2200W (10sec.)
Poles 2
Turns 6
Idle current (I0) at 8.4V [A] 5,31
Internal resistance (Ri) [Ohm] 0,007
Gear reducing 6,7:1
Output shaft 6mm
Recommended timing [°] 0° - 5°
Switching Frequenzy [kHz] 8
Controller recommendation [A] (depending on setup) 120 - 200
Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 4610
Weight [g] 237
Length [mm]/[in] 89,7
Diameter [mm]/[in] 29
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6

Este produto foi introduzido em Terça 18 Julho, 2023.
