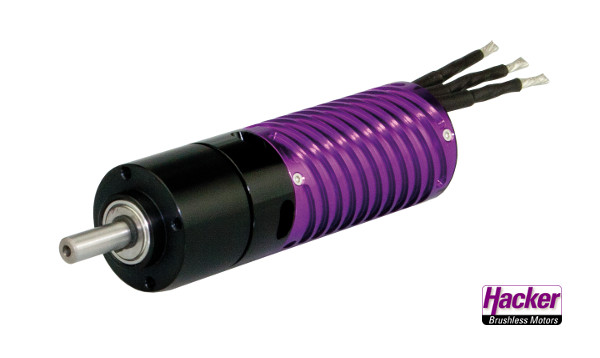

B40-7L Comp + 6,7:1 Kv 3960

379.90€

ELÉCTRICOS

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

B40-7L Comp + 6,7:1 Kv 3960

Price 379.90 plus shipping costs

area of application: gliders with slim fuselages upto 3kg at 3S LiPo

The integrated high-performance fan cools the B40 competition motors in the most effective way. The running noise

Technical Data

max. power range [W] (max.15 sec.) 1200W (max. 10sec.)
Poles 2
Turns 7
Idle current (I0) at 8.4V [A] 4
Internal resistance (Ri) [Ohm] 0,009
Gear reducing 6,7:1
Output shaft 6mm
Recommended timing [°] 0° - 5°
Switching Frequenzy [kHz] 8
Controller recommendation [A] (depending on setup) 75 - 100
Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 3960
Weight [g] 237
Length [mm]/[in] 89,7
Diameter [mm]/[in] 29
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6

Este produto foi introduzido em Terça 18 Julho, 2023.
