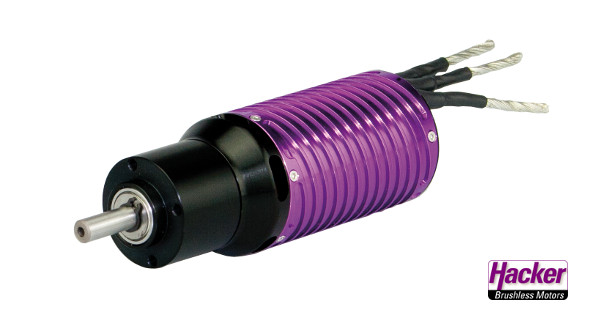

B50-8L Competition + 6,7:1 Kv 2720

Price 399.90 plus shipping costs

area of application: sportive Glider upto 6kg at 4 to 5S LiPo

The integrated high-performance fan cools the B50 competition motors in the most effective way. The running noise i

Technical Data

max. power range [W] (max.15 sec.) 2100
Poles 2
Turns 8
Idle current (I0) at 8.4V [A] 4,3
Internal resistance (Ri) [Ohm] 0,007
Gear reducing 6,7:1
Recommended timing [°] 0 - 5
Switching Frequenzy [kHz] 8
Controller recommendation [A] (depending on setup) 90 - 130
Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 2720
Weight [g] 347
Length [mm]/[in] 94,5
Outer diameter [mm]/[in] 37
Shaft diameter [mm]/[in] 6
