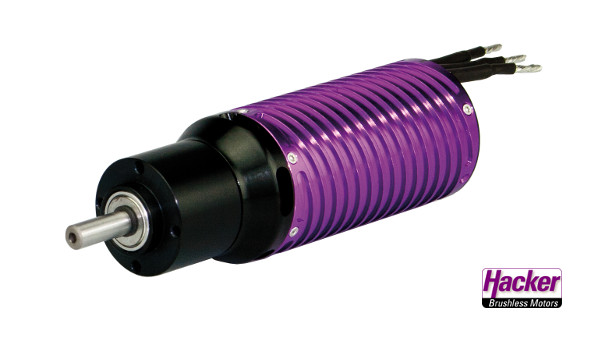

B50-13XL Competition + 6,7:1 Kv 1250

Price 449.90 plus shipping costs

area of application : Glider upto 16-20kg at 10S LiPo

The integrated high-performance fan cools the B50 competition motors in the most effective way. The running noise is a

Technical Data

max. power range [W] (max.15 sec.) 2800
Poles 2
Turns 13
Idle current (I0) at 8.4V [A] 1,8
Internal resistance (Ri) [Ohm] 0,021
Gear reducing 6,7:1
Recommended timing [°] 0 - 5
Switching Frequenzy [kHz] 8
Controller recommendation [A] (depending on setup) 80 - 130
Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 1250
Weight [g] 405
Length [mm]/[in] 105
Outer diameter [mm]/[in] 37
Shaft diameter [mm]/[in] 6
