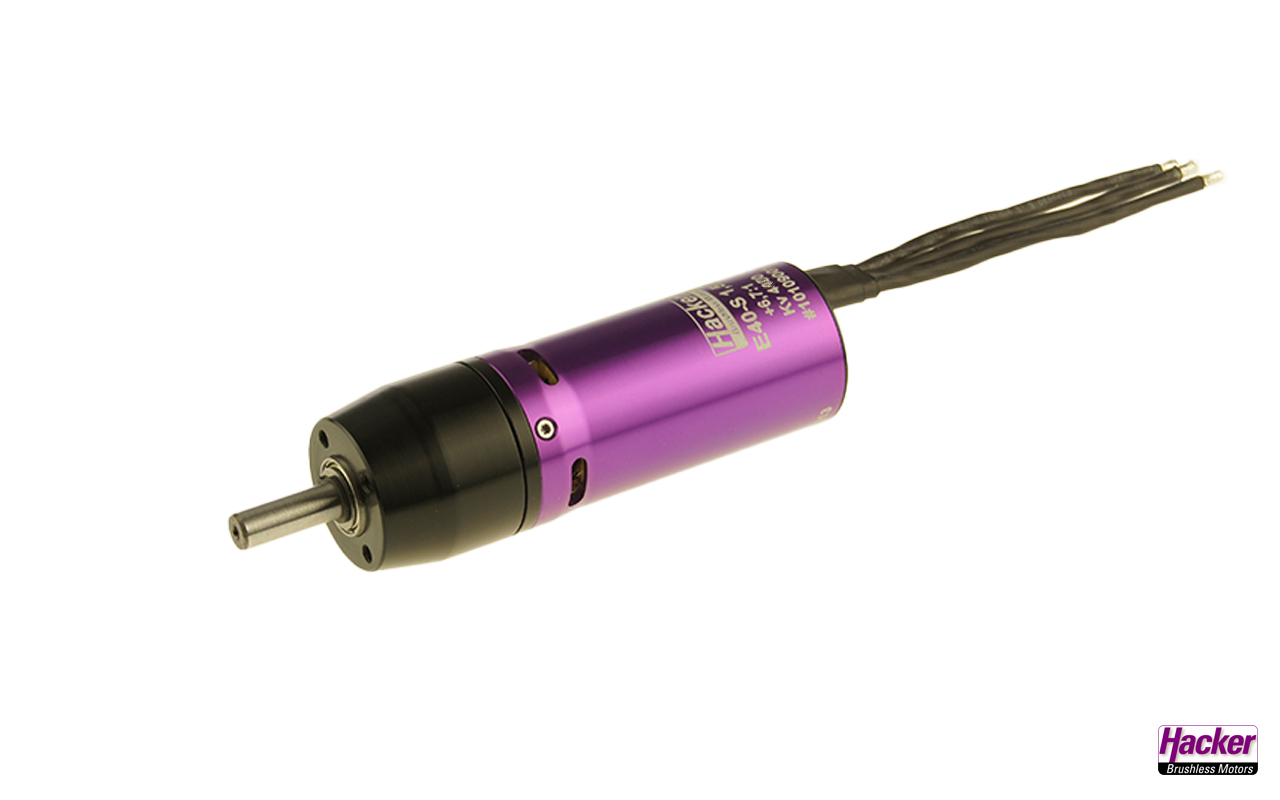

E40-S 1,5D +6,7:1 Kv 4400

Price 319 plus shipping

Compact, light and powerful, this modern gear drive is perfect for F3F/F3J and F5J models, for applications with 3S to 4S LiPo batteries and up to 5 kilograms take-off weight.

Driven by our E40-S

Technical Data

max. power range [W] (max.15 sec.) 1200
Poles 4
Turns 1.5D
Idle current (I0) at 8.4V [A] 3.8
Internal resistance (Ri) [Ohm] 0,007
Gear reducing 6.7:1
Output shaft 6
RPM max. 10000
Recommended timing [°] 10-15
Controller recommendation [A] (depending on setup) 60-100
Idle speed per volt (kv) 4400
Weight [g] 208
Length [mm]/[in] 85.1
Diameter [mm]/[in] 25
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6
