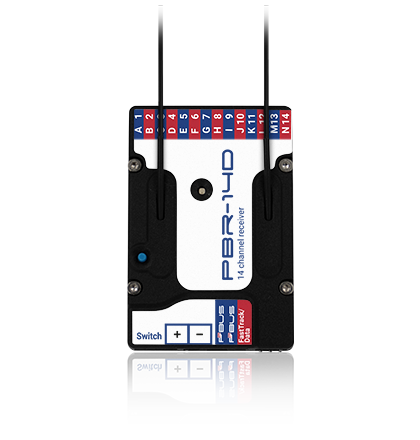

PBR-14D

209.00€

RECETORES POWERBOX

PowerBox

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

14 Channel 2.4GHz Receiver

Features

14 channel 2.4GHz receiver
Two independent redundant receiver circuits
Optional PBR26XS to add additional redundancy
Extreme interference rejection
Ultra-long range
Option of iGyro SAT
Two integral telemetry / servo bus (P²BUS)
30cm long antennas for all mounting situations
Built in electronic switch, activated by integral button, MicroSwitch or MicroMag
MPX High power connector up to 20A
Powerful real-time telemetry
Reception quality, battery voltage, current and capacity available via telemetry at the transmitter
Auxiliary output as serial interface (FastTrack, S.BUS and SRXL)
Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage 4.0V - 9.0V
Current drain Power-on state 105mA
Supported RC systems ATOM/CORE
Channels 14
Programmable servo outputs FastTrack, SRXL, S.BUS
Servo signal resolution 4096 Steps
Signal frame rate 12ms, 15ms, 18ms, 21ms
Integral gyro system optional with iGyro SAT
Supported telemetry systems P²-BUS
Dimensions 62 x 42 x 13 mm
Weight 29 g
Temperature range -30°C to +85°C
